Two-way, double reflex series.
2 x 130mm woofer. in treated paper
Tweeter 24 x 50mm isodynamic in mylar
Impedance: 8 ohm (min. 6.5)
RMS power: 100 W
MAX power: 150 W
Sensitivity: 90 dB / W / 1m
Weight: 17 Kg.
Finish: rosewood , black.

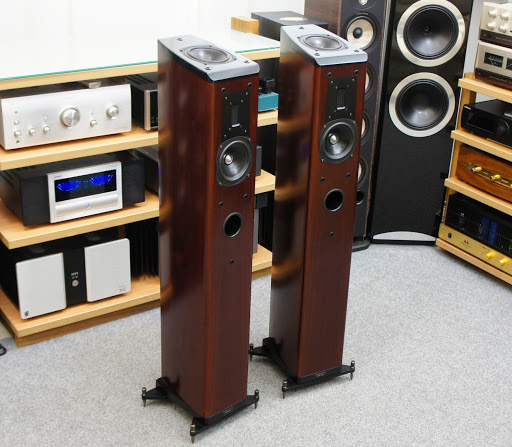

This diffuser immediately reveals the close relationship with the CNM TOWER, of which it proposes the basic architecture, but with equal evidence it stands out for its class and elegance. The technical solutions, such as the double reflex load in series and the mounting of the woofers on orthogonal planes, the shape of the cabinet with non-parallel walls to avoid resonances and give lightness and elegance to the design clearly indicate the ambitions of this product. The double reflex in series allows you to fully exploit the performance of the woofers, giving the reproduction body and control at the same time. The positioning of the speakers on orthogonal planes reduces the interference on the vertical plane and increases the dispersion in the mid range, resulting in a very truthful reconstruction of the scene. The woofers, derived from many years of experience with the CNM series, they have a die-cast basket with excellent mechanical properties, paper membrane treated for a very natural sound, rubber suspension, double magnet which in addition to optimizing the flow in the air gap performs a partial shielding. The conformation of the ogive, in turned aluminum, is decidedly particular. It derives from a long research work that has produced excellent performances in the middle range and a precise focusing of the sound image. in turned aluminum, it is decidedly particular. It derives from a long research work that has produced excellent performances in the middle range and a precise focusing of the sound image. in turned aluminum, it is decidedly particular. It derives from a long research work that has produced excellent performance in the mid range and a precise focusing of the sound image.
The tweeter is a modern, technologically advanced component; the mylar membrane, thin and very light, is driven over the entire surface by a linear magnet motor and an aluminum spiral that replaces the classic voice coil of dome tweeters with great weight savings. The result is an extremely fast response, capable of reproducing even the fastest transients and the most ethereal components of sounds while maintaining excellent tonal neutrality. The use of this tweeter makes it practically mandatory to use an 18 dB / oct filter. instead of the usual 6 dB / oct. that characterize our production. The result is a design challenge to keep the characteristics of homogeneity and extraordinary capacity unaltered. of spatial reconstruction that have always been strong points of our speakers. The result is a 6 dB / oct crossover. on woofers and at 18 dB / oct. on the tweeter but both very different from the theoretical models: from the 4 elements provided in a similar scheme we come to use 13, all of great quality. Such as the ACOUSTICAL AUDIOCAP polypropylene capacitors, produced to our specifications, and the inductances with a large cross section of iron powder core and wire, which reduce losses and stand out for their excellent sound characteristics. The critical resistances are of the anti-inductive type, the cable is a particular increased version of a conductor for high frequency data transmission (Cat. 6 Plus). The comfortable and robust input terminals accept any type of connection; as an option it is
