Douk Audio T9 HiFi Magic 6E2 Vacuum Tube Stereo Preamp MM/MC Phono Stage for Turntable Amp

Douk Audio T9 HiFi Magic 6E2 Vacuum Tube Stereo Preamp MM/MC Phono Stage for Turntable Amp

• Vintage Vacuum Tubes
• Input: Stereo RCA / Phono MM(MC)
• Output: Stereo RCA / 3.5mm Headphone Jack
• Metal Case & CNC Aluminum Panel

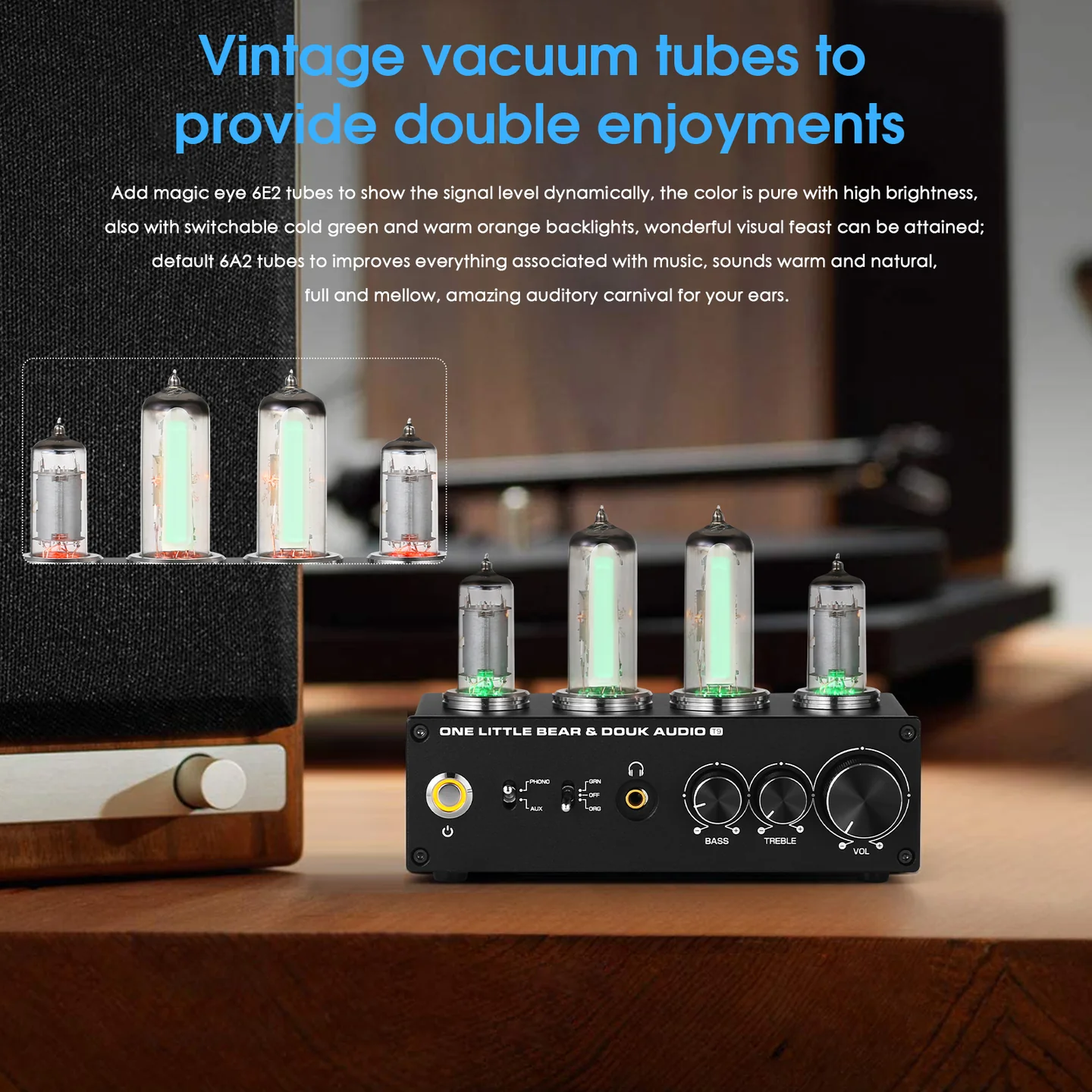

• Vintage vacuum tubes to provide double enjoyments: add magic eye 6E2 tubes to show the signal level dynamically, the color is pure with high brightness, also with switchable cold green and warm orange backlights, wonderful visual feast can be attained; default 6A2 tubes to improves everything associated with music, sounds warm and natural, full and mellow, amazing auditory carnival for your ears.

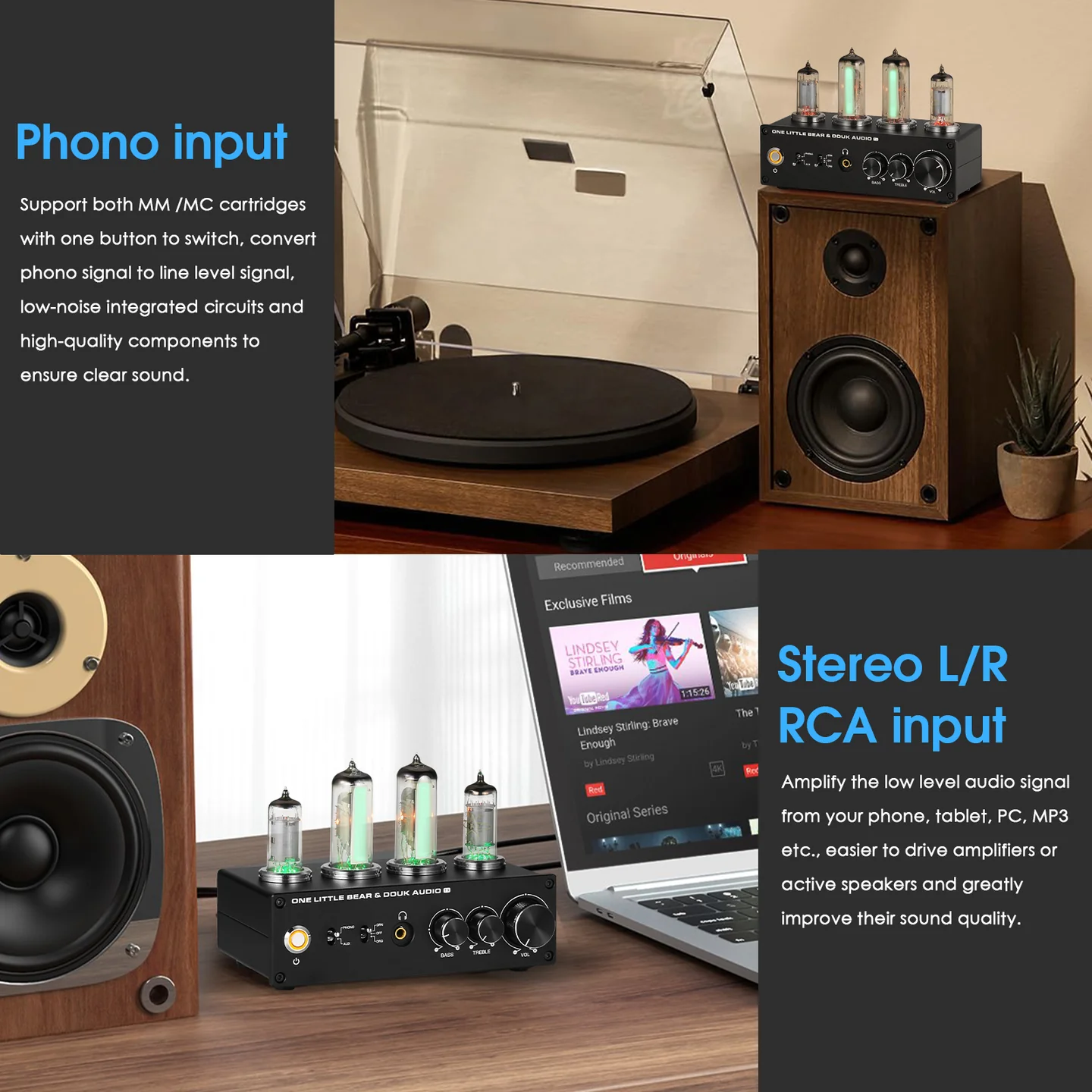

• T9 tube preamp with Phono and RCA inputs: Phono input, support both MM /MC cartridges with one button to switch, convert phono signal to line level signal, low-noise integrated circuits and high-quality components to ensure clear sound. Stereo L/R RCA input, amplify the low level audio signal from your phone, tablet, PC, MP3 etc., easier to drive amplifiers or active speakers and greatly improve their sound quality.

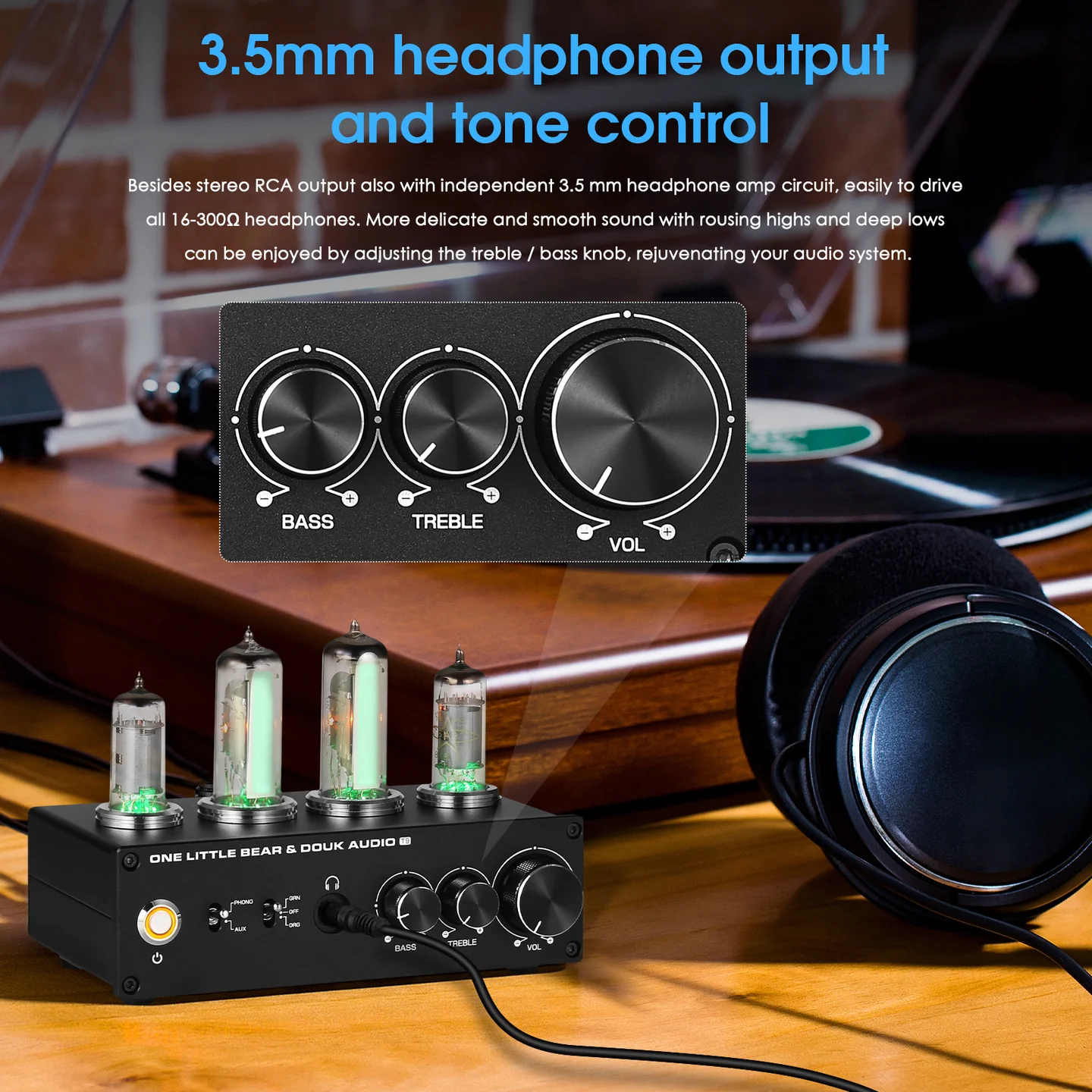

• 3.5mm headphone output and tone control: besides stereo RCA output also with independent 3.5 mm headphone amp circuit, easily to drive all 16-300Ω headphones. More delicate and smooth sound with rousing highs and deep lows can be enjoyed by adjusting the treble / bass knob, rejuvenating your audio system.
• Attractive looking and powerful design: all metal case and CNC aluminum panel with good shielding performance to avoid external interference. Solid and durable knurled knob, all I/O interfaces are gold-plated to ensure the tight and smooth transmission of the original audio signal to minimize the loss of the signal.

• Audio input: Stereo RCA / Phono MM(MC)
• Audio output: Stereo RCA / 3.5mm Headphone Jack
• Headphone impedance range: 16-300Ω
• Headphone output power:
  250mW@32Ω
  100mW@64Ω
  60mW@128Ω
• RCA IN:
  Input level: 0.775V RMS
  Output level: 1.5V RMS
  Input impedance: 100K ohm
  SNR: ≥106dB
  Frequency response: 20Hz-20KHz (±0.5dB)
• PHONO IN:
  Input level: 0.005V RMS (MM) / 0.0005V RMS (MC)
  Output level: 0.6V RMS
  Input impedance: 47K ohm (MM) / 330ohm (MC)
  SNR: ≥80dB
  Frequency response: Ref to RIAA ±2dB
• THD: ≤0.1%
• Tube: 2×6E2; 2×6A2
• Treble&Bass: ±10dB
• Backlight Color adjustable: GREEN/ORANGE/OFF
• Working voltage: DC 12V(≥1A)
• Dimensions (W*D*H): 154*87*47mm / 6.06*3.43*1.85in
• Package dimensions(W*D*H): 210*190*100mm / 8.27*7.48*3.94in
• Net weight: 600g/1.32lb
• Package weight: 1.0kg/2.20lb

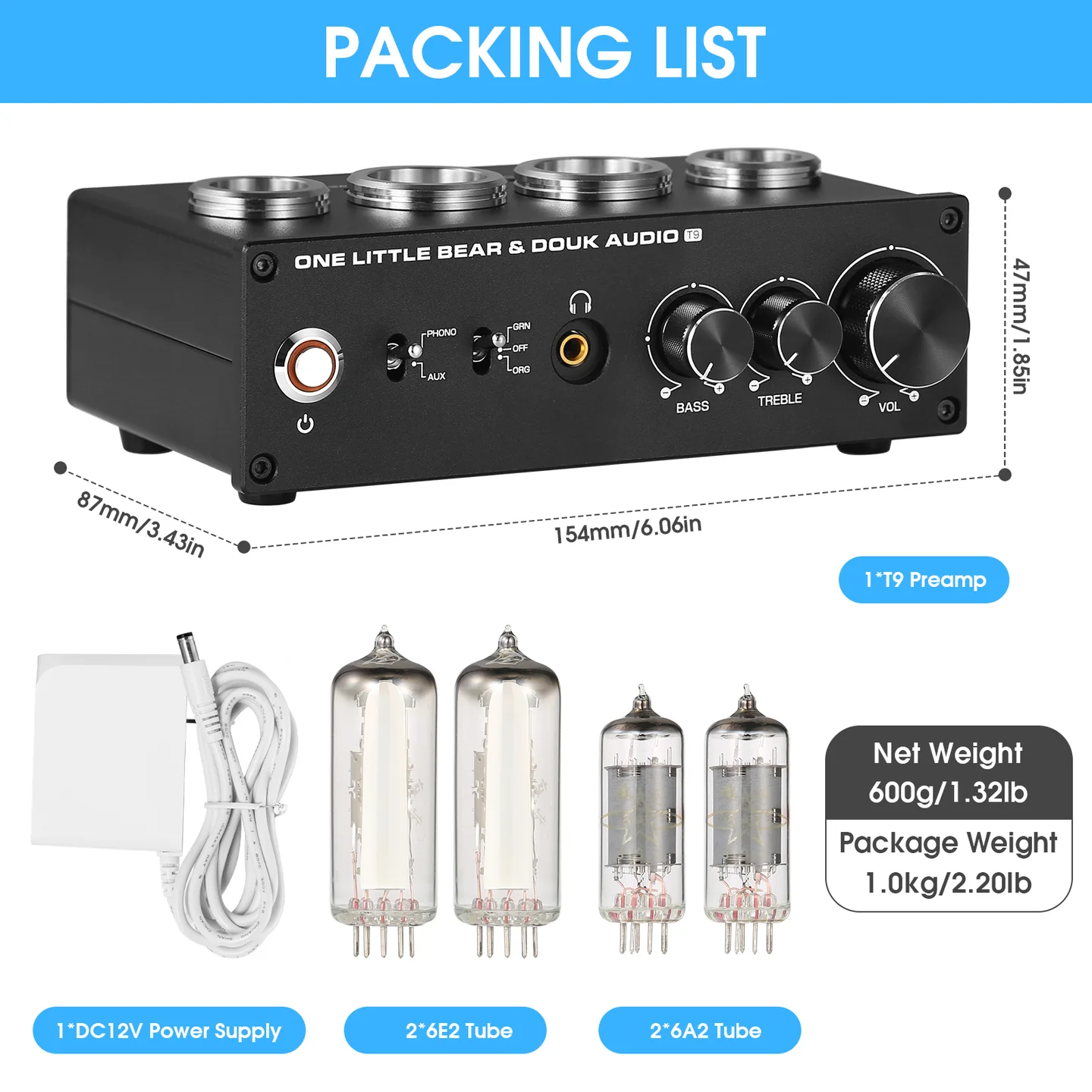

• T9 Preamp ×1
• 6E2 Tube ×2
• 6A2 Tube ×2
• DC12V Power Supply ×1
• User Manual ×1

• Douk Audio T9
  Magic Eye 6E2 Tube Phono Preamp

  Douk Audio T9 delivers a vintage sound with 6E2 and 6A2 tubes, offering dynamic visual cues and warm audio. It supports MM/MC phono and RCA inputs for diverse connections and features a 3.5mm headphone jack for high-quality personal listening. The sturdy metal and CNC aluminum construction ensures both style and signal integrity.



  Vintage Sound

  Rich, authentic audio from 6E2 and 6A2 vacuum tubes.



  Tube Replacement with Adjustable Light

  Convenient plug-and-play tube swapping for personalized sound.



  Versatile Connectivity

  Easily connect various audio sources with Phono and RCA inputs.



  Customizable Headphone Output

  Drives a broad range of headphones with adjustable sound settings.



  Customizable Audio

  Fine-tune your sound with independent treble and bass controls.



  Ready-to-Use

  Includes power supply and comprehensive setup guide.



  Clear Audio Output

  Phono to line level conversion ensures pristine sound quality.



  Sturdy Design

  Elegant, all-metal construction for durability and style.
