2M Red Technical data.

Output voltage at 1000 Hz, 5cm/sec.  –  5.5 mV
Channel balance at 1 kHz   –  1.5 dB
Channel separation at 1 kHz  –  22 dB
Channel separation at 15 kHz  –  15 dB
Frequency range at – 3dB  –  20-22.000 Hz
Frequency response  –  20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force  –  70 µm
Compliance, dynamic, lateral  –  20 µm/mN
Stylus type  –  Elliptical
Stylus tip radius  –  r/R 8/18 µm
Tracking force range  –  1.6-2.0 g (16-20 mN)
Tracking force, recommended  – 1.8 g (18 mN)
Tracking angle  –  20°
Internal impedance, DC resistance  –  1.3 kOhm
Internal inductance  –  700 mH
Recommended load resistance  –  47 kOhm
Recommended load capacitance  –  150-300 pF
Cartridge colour, body/stylus  –  Black/Red
2M standard and 2M Verso cartridges weight  –  7.2 g
2M PnP MkII cartridge with integrated headshell weight  –  20 g
2M PnP MkII cartridge with integrated headshell length – 52 mm

Replacement stylus unit  –  2M Red (interchangeable with 2M Blue and 2M Silver)

Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

Features

– an improved engine, which provides an increased output of 5.5 mV and an optimized sound reproduction and a high level of sonic accuracy.
– a tipped Elliptical diamond and split pole pins with a copper wire.
– the cartridge body is manufactured from Hopelex, an environment-friendly material which ensures high rigidity while eliminating unwanted resonances.

We have optimized the design for ease of mounting the cartridge, and the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

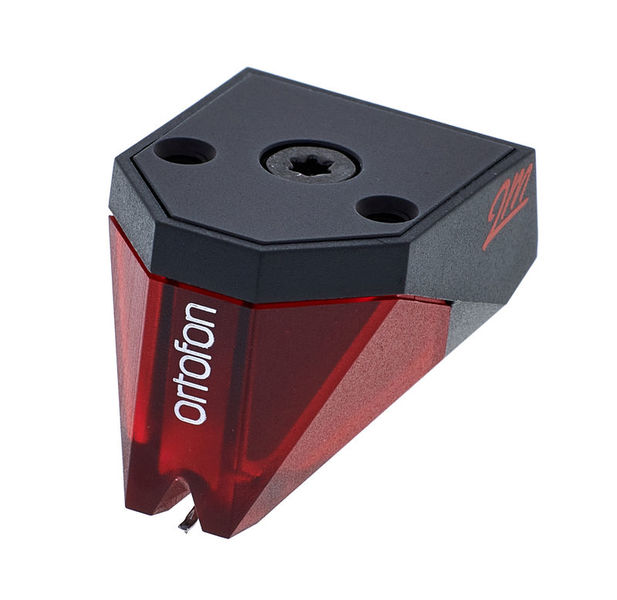

2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.
