The balanced circuitry behind the preamp. It is our philosophy and we are proud to develop it to the best of our ability and always.
There are many conflicting opinions on this configuration. There are those who say that it is useless in the domestic environment, those who say that it degrades and dirty the sound, others that it only serves to determine a higher cost of the equipment for purely commercial purposes.
In part, all of this could only be true if this aspect of the project is neglected or poorly designed.
Recent technical field tests have also demonstrated that if the overall project is executed to perfection, the final result can be considered the maximum in terms of musicality, transparency and dynamics.
In the CLASSIC B1 nothing has been left to chance, starting from a dual mono power supply and circuitry up to the actual heart where each amplification section is double. including the innovative volume control that uses two separate stages for each channel on an array of digitally controlled MOSFETs. Furthermore, thanks to its native balanced nature, even single ended line inputs are entirely converted to balanced, including the PHONO RIAA stage. Simply put, you won’t hear a more dynamic and transparent preamp than this one.
The volume control section, a stage not to be underestimated.
The most delicate, fundamental part and to be treated with extreme care, because it is also this stage that overall determines the general performance of reproduction
Unlike many manufacturers who use classic motorized potentiometers, we have developed a completely different stage which guarantees the project a set of very important performance advantages. We have implemented gain control via an array of armored Mos-fets in a special IC which are controlled digitally. As a first factor, we have forever eliminated the wear of the carbon layer typical of traditional potentiometers and this forever eliminates the onset of the annoying Hum & Noise and Pop & Click that are inevitable with wear over time.
Another advantage that is often overlooked is the linearity of the response which is modified as the volume increases or decreases with the use of carbon layer potentiometers or even the more sophisticated resistor array potentiometers.
This happens when a resistance is found in the signal passing through the potentiometer which also modifies the impedance factor and which causes this artefact .
The optional DAC section:
it is possible to equip the preamplifier with a latest generation DAC stage which further expands the B1 inputs for new digital technologies. 4 additional inputs USB, COAX, OPTICAL and AES/EBU make the preamplifier extremely versatile with a wide choice of connection options to best enjoy your music from your favorite source.
Whether it is usable from streaming, from a CD player or from the television, with this section you will get the best in terms of reproduction and musicality.
The project is developed on a SABER 9038PRO device with 8-channel 32-bit Hyperstream architecture and an SNR ratio of over 140 db which allows it to have shocking dynamics and “sweetness”.
The DAC reads files with conversion up to 784 Khz in PCM and DSD 256 in Dop or DSD 1024 natively.
Installation is very simple and the firmware automatically recognizes the DAC connection, enabling the appropriate controls and service menu section on the display.
Native balanced dual mono preamplifier

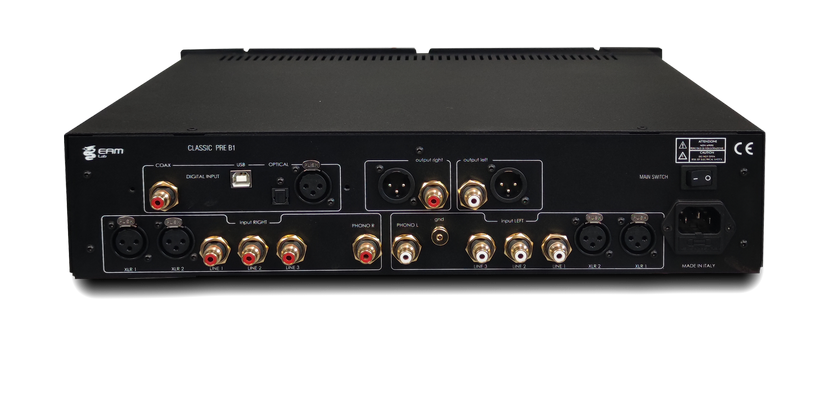

· Inputs
2 balanced inputs via XLR
3 line inputs
1 RIAA MM phono input
· exits
1 x balanced xlr
1 RCA single ended
· Input impedance:
22 Kohm via XLR, 22 Kohm via RCA
· Slew/rate
35 V/uS
· Frequency response
From 20 Hz to 40 Khz +/- 0.2 dB –
· THD
0.0002% @ 4 Vrms from 20 Hz to 20 Khz
· Phono input
MM – 47Khom – 41 db gain
· DAC section
USB – 784 Khz pcm – DSD256 in Dop mode / native DSD 1024
COAX
Optical
AES/EBU via XLR
· Channel separation > 80 db
· A-weighted SNR >104 db
· Dimensions 35 x 42 x 11 cm. (D x W x H)
· Weight 10 kg
· OPTIONAL DISPLAY COLORS
White, yellow, green, blue
REMOTE CONTROL INCLUDED
