Eam Lab ELEMENT 202i

It is the most powerful integrated amplifier in the element family and is the centerpiece of high performance in a large stereo system.

with over 250 Watts per channel, the amplifier section has enough power to properly drive all speakers. Equipped with a massive power supply made up of our made to specification transformers it ensures that your speakers will always receive an abundant current reserve regardless of their impedance, while all protections will prevent clipping and keep your speakers safe from damage.

The rhodium-plated input connectors favor the best contact ever with the cables for the sources as proof of a signal transfer without any color and high fidelity

We are sure that this integrated amplifier will be the ideal companion for many hours of music at the highest level

Solid state amplifier
DUAL MONO
balanced circuitry from IN to OUT

EamLab transformers
PRE-OUT output
Selectable source gain
Rms power 8 ohm 270 + 270
• Rms power 4 ohm 400 + 400

• Thd full power 4 ohm <0.03%

• THD + N> 115db

• Freq. Resp. 10hz – 40 khz +/- 0.5db

• DF> 250 @ 70 hz 8ohm

• XLR input sensivity 47 Kohm / 2.8 Vrms

• RCA input sensivity 22 kohm / 1.4 Vrms

• Idle current stand-by 1W
Full power 1100 W

• Dimension 420 * 410 * 210 mm

• Weight 42 Kg

Features
1 XLR stereo input
4 RCA line input (CD, TUNER, MM, AUX)
PRE-OUT / AMP-IN working mode via RCA (short rear connector)
Aluminum infrared remote control
Oled yellow display
The ELEMENT 202i integrated amplifier is among the most sonically transparent and reliable products available in this category to date. It offers equal, and in some ways better levels of performance to the best separate audio components.
202i is a state-of-the-art stereo integrated amplifier that uses a digital volume control based on a resistance array chip.

This technology, in reference to the signal path, is still implemented in analog mode. It offers many advantages such as perfect channel balance, simple integrated channel balance adjustment with no additional parts, virtually non-existent adjustment noise and first-class noise and distortion behavior thanks to optical encoder adjustment.

All signal circuits are completely discrete to avoid the annoying sonic limitations inherent in ICs.

• Two completely separate and independent power supplies for each channel with custom built toroidal transformers and low induction to prevent any possibility of noise or interference.

an ultra-linear input buffer allows for a substantial reduction in noise and distortions.

• switching relay with gold-plated pins for better contact and performance over time.

• Front panel headphone output allows monitoring for private listening.

• High current reserve for fast response and ever-present dynamics
CIRCUIT TOPOLOGY

in dual mono configuration, each channel is powered separately and all power supplies are stabilized and optimally filtered. The power is supplied by two EamDualcorETM transformers with a total power of 900 VA each and a low ESR filtering section of over 60,000uF guaranteeing an energy supply even at high volumes and low load impedances.
The driving reliability and stability on the load is entrusted to 6 pairs per channel of bipolar transistors in Darlinghton configuration

The entire filter section, including the rectifier bridges, are mounted on the main PCB. With this method we have eliminated the wiring in the air to the advantage of a lower contact resistance and a greater supply of current to the main power circuits.

IN / OUT CONNECTIONS

• 1 pair of balanced XLRs
• 4 pairs of RCAs • 2 pairs
of WBT terminals for loudspeakers

• 1 VDE 10 A power socket. importance to this section as it is the first approach towards a perfect sound performance. Also for this section the power supplies are filtered and optimally stabilized

FRONT INDICATORS

Contrast angle Oled display

MECHANICAL CONSTRUCTION

12mm steel chassis reinforced with ribs at critical points to minimize vibrations. The front panel is in 10 mm anticorodal aluminum.

FINISH

Chassis and heat sinks painted with special heat and scratch resistant polymers. available in titanium finish, copper black or their variants

Μάρκα

Eam Lab ELEMENT 260Ai

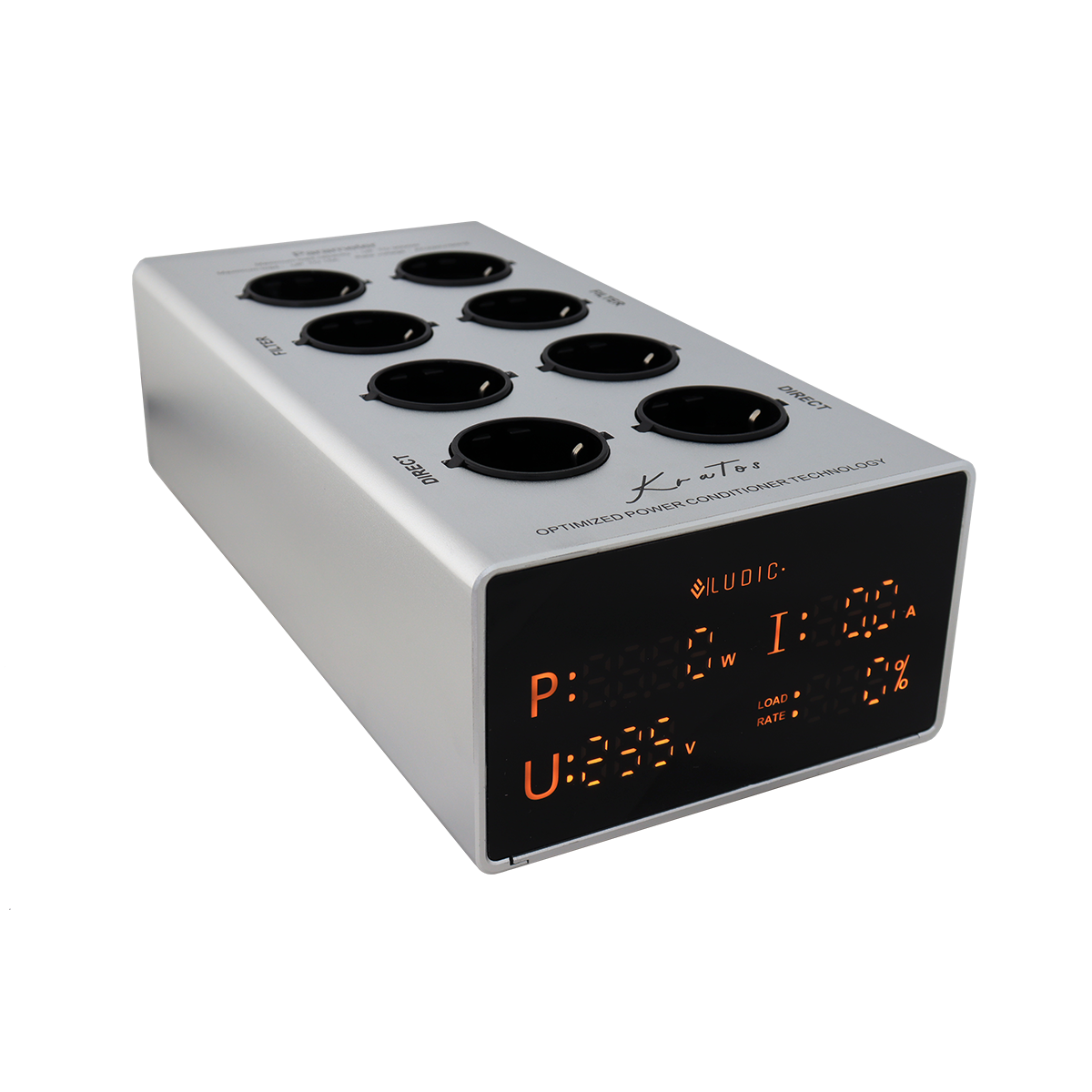

LUDIC KRATOS POWERFILTER SILVER NEW MODEL.
