Name: Thivanlabs Eagle 845 Headphones&amp;Speakers Integrated Amp.
SKU: 6224
Price: 7600.00 EUR
Availability: InStock

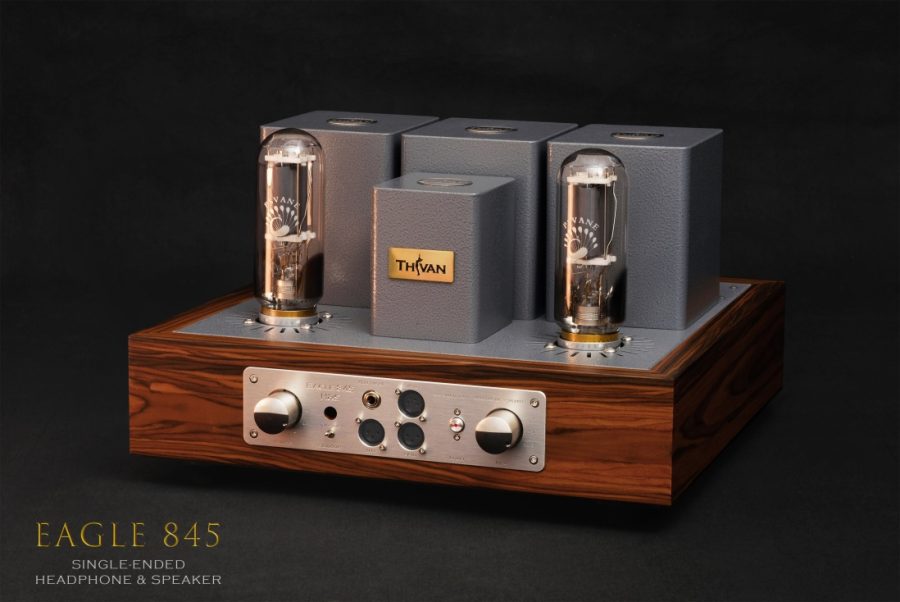

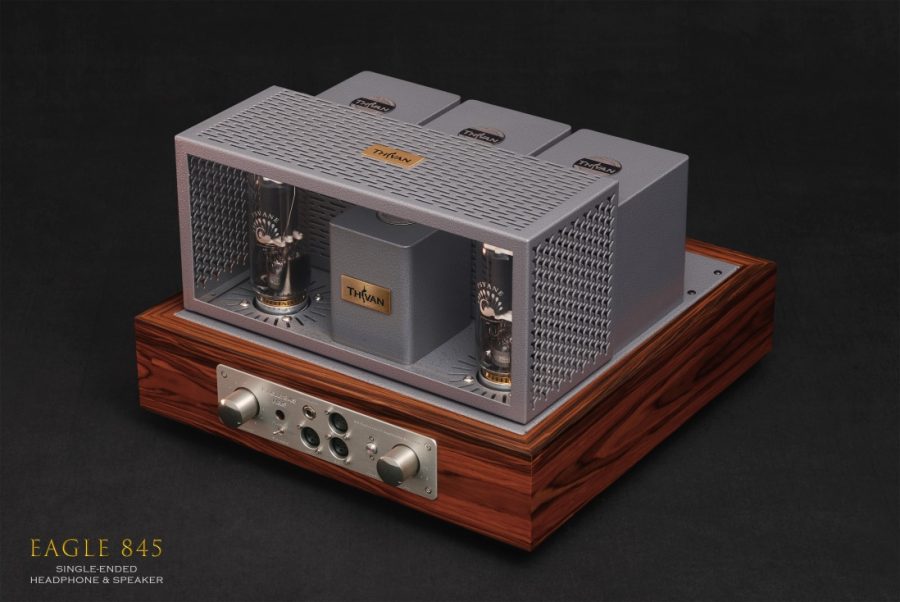

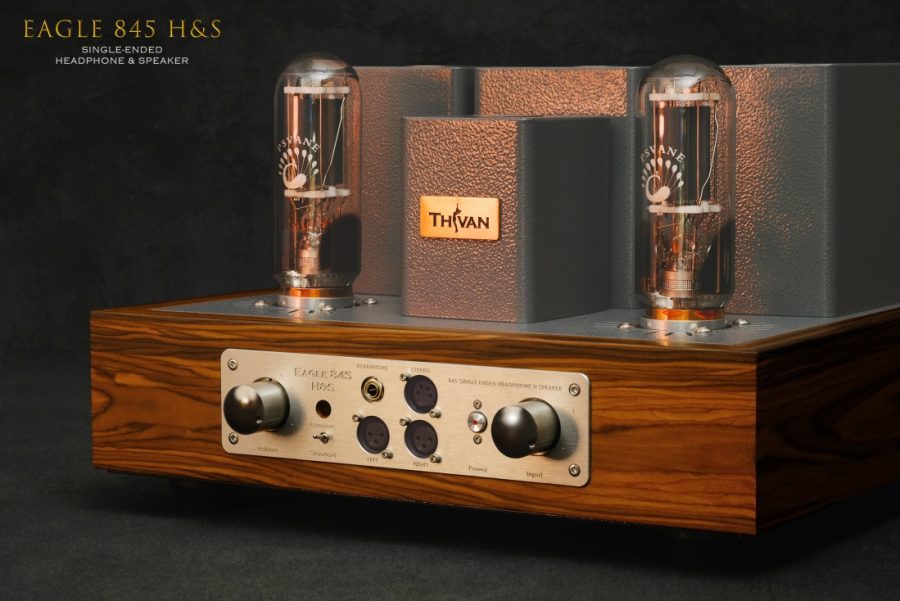

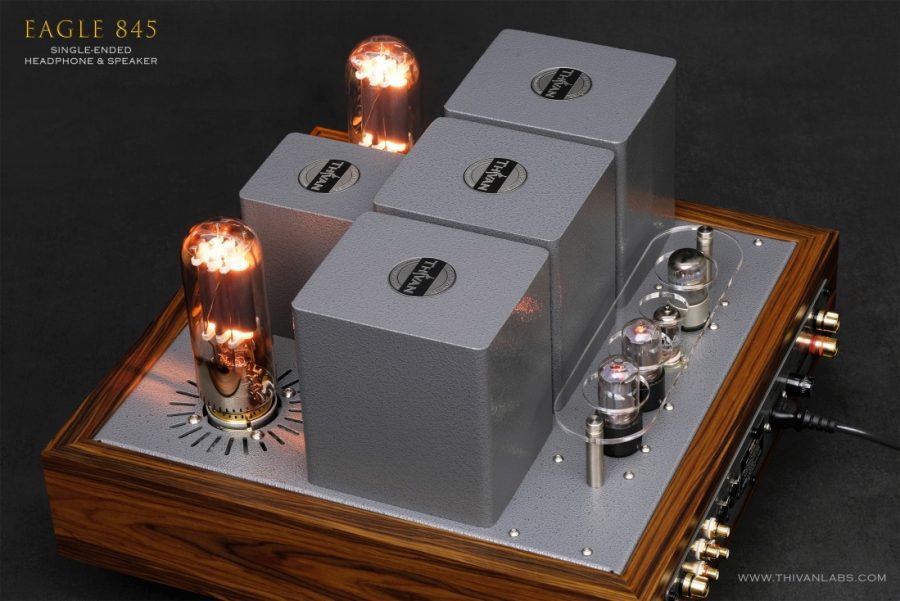

Thivanlabs Eagle 845 Headphones&Speakers Integrated Amp.

7.600,00€

Description

Thivanlabs Eagle 845 Headphones&Speakers Integrated Amp.

SPECIFICATIONS

Model	EAGLE 845 H&S single-ended
Number of amp blocks	1
Inputs	1 XLR ; 2 RCA
Speakers	4, 6, 8, 16 Ohms
Headphone Output	1/4″ (6.3mm) stereo headphone
	4-pin XLR stereo headphone
	Dual 3-pin XLR (left and right channel) headphone
Vacuum tube complement
– Output tubes:	2 x 845
– Pre & driver tubes:	1 x 12AU7 ; 1 x 6SN7 ; 2 x 6V6
Output Power (per channel)	CLASS A – 22W RMS
Frequency response	10Hz – 38kHz (-3dB)
Input Sensitivity	600mV
Input Impedance	100kOhms
Power Requirements	230V (possible to set 100 /110/117/240v/50-60Hz by different markets)
Power Consumption	440W
Dimensions (W x D x H)	45 x 50 x 29 (cm)
Feature	Standard dynamic/High dynamic switch
Weight	55kgs
Remote control	Included

INTRODUCTION & FEATURE

EAGLE 845 H&S is the first model that has started a new generation of ThivanLabs’s Headphone and Speaker Amplification

The new generation includes the following upcoming models.

– Eagle 845 H&S Single-ended Headphone & Speaker Amp

– Swan 211 H&S Single-ended Headphone & Speaker Amp

– Magpie 811 H&S Single-ended Headphone & Speaker Amp

– Flamingo 300B H&S Single-ended Headphone & Speaker Amp

All models are equipped with remote control.

Eagle 845 HnS amplifier drives headphones with impedances from 8 ohms to 1200 ohms.

Impedance	Max Power (W)
8	22W
16	11W
32	5.5W
50	3.4W
64	2.6W
150	1.1W
300	560mW
600	280mW
1200	140mW

AUDIO SYSTEM SUGGESTION

Based on the specifications announced by the ear speaker manufacturers and the models that have been experienced by our team, the following list recommended some headphone models extremely well pushed by the Eagle-845 H&S Single-ended tube amplifier.
